دستگاه تراش مولیون
کد کالا : FR 703 Plus

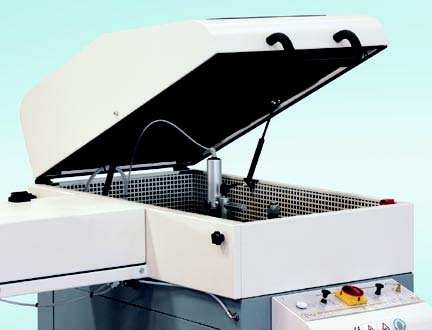

Single spindle end milling machine Realized with integrated protection for the noise reduction and the elimination of any other risks. Pneumatic cutter-head feed. Fast change of milling cutter sets.
| Routing capacity | mm | 250x120 |
| Vertical stroke | mm | 120 |
| Speed of the rotating tool | rpm | 2800 |
| Electric frequency | Hz | 50-60 |
| Power of the motor | kW | 1,12 |
| Electric power supply | V | 240-400 |
| Air consumption of compressed air per working cycle | Nl | 12 |
| Pneumatic operating pressure | bar | 7 |
| Height of the machine | mm | ± 1300 |
| Width of the machine | mm | ± 750 |
| Length of the machine | mm | ± 1200 |
| Weight of the machine | kg | ± 160 |
