دستگاه برش دوسر تمام اتومات
کد کالا : SW 553-R Reverse Vico

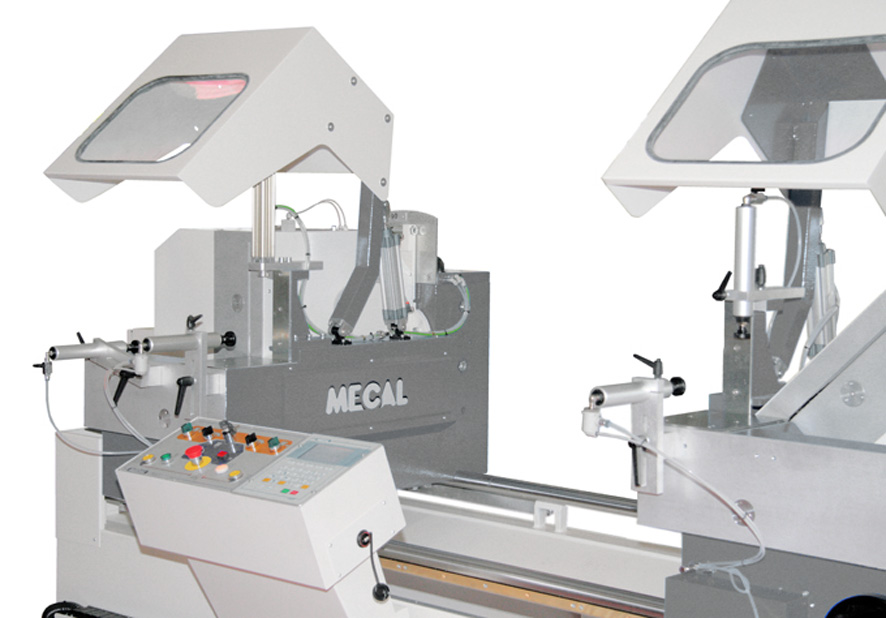

Double mitre saw with a fixed unit on the left and the other one movable, with blade diameter 550 mm. R = Version with the center blade lowered; this increases the cross‐cutting capacity on the support surface Powered positioning of the mobile cutting unit Pneumatic tilting of the cutting heads on pre‐selected angles ( 135°, 90°, 45° or 22,5°) The intermediate degrees can be obtained by manually setting mechanical stops Realized with cutting length of 4000 mm or 5000 mm or 6000 mm. It is equipped with the positioning system EC 609.
| Angles preselected of positioning of the cutting devices, outwards | ° | 135 – 90 – 45 – 22,5 |
| Diametre of the sawblade | mm | 550 |
| Sawblade bore | mm | 30 |
| Speed of the rotating tool | rpm | 2800 |
| Maximum useful cutting length | mm | 4000 / 5000 / 6000 |
| Tolerance in the positioning repeatability | mm | ± 0,1 |
| Power of the motor | kW | 3(x2) |
| Air consumption of compressed air per working cycle | Nl | 38 |
| Pneumatic operating pressure | bar | 7 |
| Height of the machine | mm | ± 1690 / 2130 |
| Width of the machine | mm | ± 1600 |
| Length of the machine , 4m. Useful cutting length | mm | ± 6000 |
| Length of the machine , 5m. Useful cutting length | mm | ± 7000 |
| Length of the machine , 6m. Useful cutting length | mm | ± 8000 |
| Weight of the machine , 4m. Useful cutting length | kg | ± 1800 |
| Weight of the machine , 5m. Useful cutting length | kg | ± 1900 |
| Weight of the machine , 6m. Useful cutting length | kg | ± 2000 |
