دستگاه کپی فرز نیمه اتومات
کد کالا : FR 830 Easy-Ter

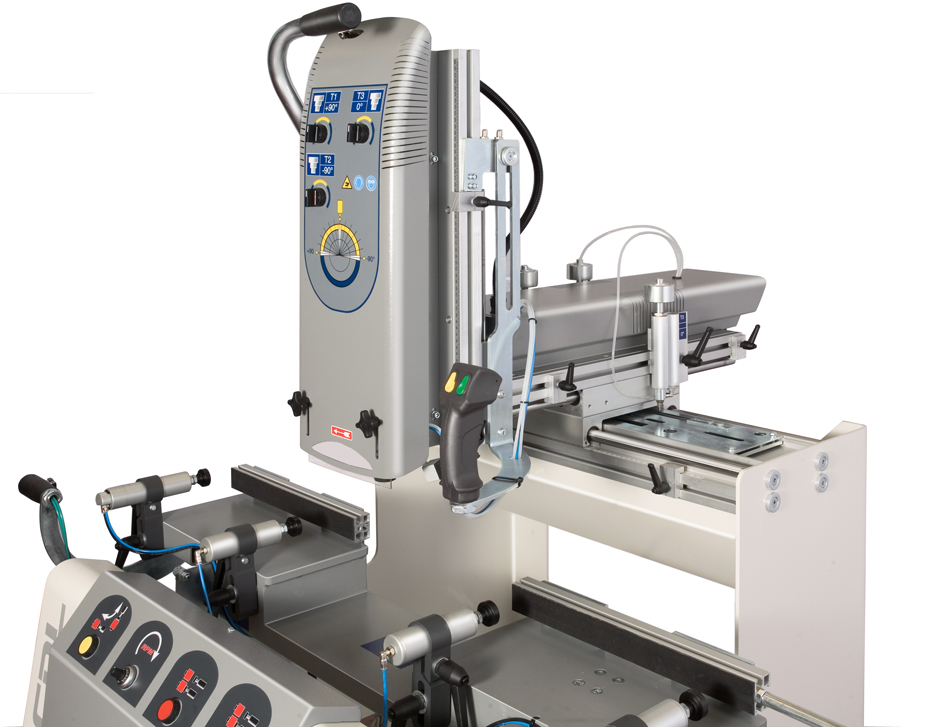

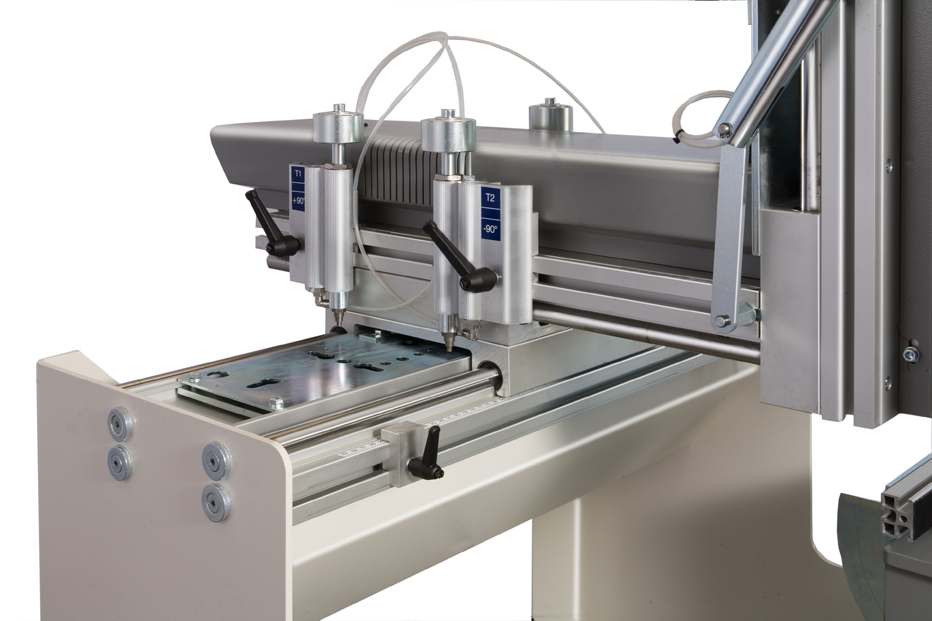

One-spindle copy router Also suitable for working on steel. The piece hold by pneumatic clamps mounted on a tilting support can be pneumatically tilted on any positions, between -90° and+90°. Suitable for passing workings. Manual working cycle.
| Routing capacity | mm | 290×185 |
| Vertical stroke | mm | 200 |
| Clamping capacity | mm | 170×135 |
| Speed of the rotating tool | rpm | 2800-12000 |
| Electric frequency | Hz | 50 |
| Power of the motor | kW | 1,1 |
| Electric power supply | V | 230-400 ±5% |
| Air consumption of compressed air per working cycle | Nl | 4 |
| Pneumatic operating pressure | bar | 7 |
| Height of the machine | mm | ± 1800 |
| Width of the machine | mm | ± 1160 |
| Length of the machine | mm | ± 1300 |
| Weight of the machine | kg | ± 260 |
